Internal Sand Blasting · External Shot Blasting: Artillery Shell Case Blasting Machine

A dual-process line for cartridge-type workpieces: the inner cavity is cleaned by compressed-air sand blasting guns, the outer surface by centrifugal shot blasting wheels. Precision cleaning, hold-point protection and high efficiency for artillery shell cases, gas cylinders and similar thin-wall parts.

Qingdao Jinwo Artillery Shell Case Internal Sand Blasting and External Shot Blasting Machine for Military Applications
20+ Years
Engineering Team Experience

boltQuick Answer

The Artillery Shell Case Internal Sand Blasting & External Shot Blasting Machine (QN-W series) cleans cartridge-type workpieces with two processes in one automated cycle: compressed-air sand blasting guns clean the inner cavity, centrifugal shot blasting wheels clean the outer surface. It handles calibers from φ4.5mm to φ155mm across 1 to 8 workstations, reaching Sa 2.0–Sa 3.0 at Ra 0.8–6.3μm, with inner cavity qualification above 99% and batch consistency above 99.8%. Full-process flexible clamping keeps thin walls from deforming, and the same platform also cleans steel, acetylene and oxygen cylinders.

Applicable caliber
φ4.5 – 155 mm
Workstations
1 – 8 (customizable)
Surface cleanliness
Sa 2.0 – Sa 3.0
Inner cavity rate
≥ 99%

Product Features

straighten

Multi-Specification Dimensions

Custom-designed based on shell case specs. Flexible configurations from 1 to 8 workstations.

sync

Matching Parameters

Optimized for thin-wall protection, internal cavity cleaning, and explosion-proof safety.

layers

Workpiece Compatibility

Compatible with various materials, calibers, and lengths. Adapts to all process stages.

view_in_ar

Custom Blasting Design

Configurable with 1 to 8+ specialized nozzles for precision internal cavity cleaning.

settings_input_component

Electrical Adaptation

Supports global voltage standards. Integrated with Siemens or Mitsubishi PLC.

filter_alt

Environmental Dust Collection

Custom dust extraction system. Dust emission concentrations stably below 10mg/m³.

linear_scale

Conveyor System

Engineered for shell case dimensions to prevent jamming. Supports batch and continuous modes.

shield

Wear-Resistant Components

High-end materials balancing wear resistance, impact resistance, and workpiece protection.

sync_alt

Abrasive Recovery System

Fully enclosed, multi-stage closed-loop recovery. Maximizes recycling and ensures purity.

Technical Parameters

Precise technical data for the Artillery Shell Case series. Scaling and customization available for all models.

ItemStandard Value Range
ModelQN-W Series
Outer surface processCentrifugal shot blasting wheels
Inner cavity processCompressed-air sand blasting guns
Station Configuration1 to 8 Stations (Customizable)
Applicable Caliberφ4.5mm ~ φ155mm
Surface CleanlinessSa2.0 ~ Sa3.0
Inner Cavity Qual. Rate≥99%
Surface RoughnessRa0.8μm ~ Ra6.3μm
Batch Consistency≥99.8%
Working Pressure (sand blasting)0.4~0.7MPa
Air Consumption (per gun)0.8~1.6m³/min
Technical Specifications of Artillery Shell Case Internal Sand Blasting & External Shot Blasting Machine

Need Custom Specs?

Our engineering team specializes in non-standard solutions. We can adapt dimensions, blasting intensity, and material handling to your workflow.

Consult Our Engineers arrow_forward

Effect Diagram

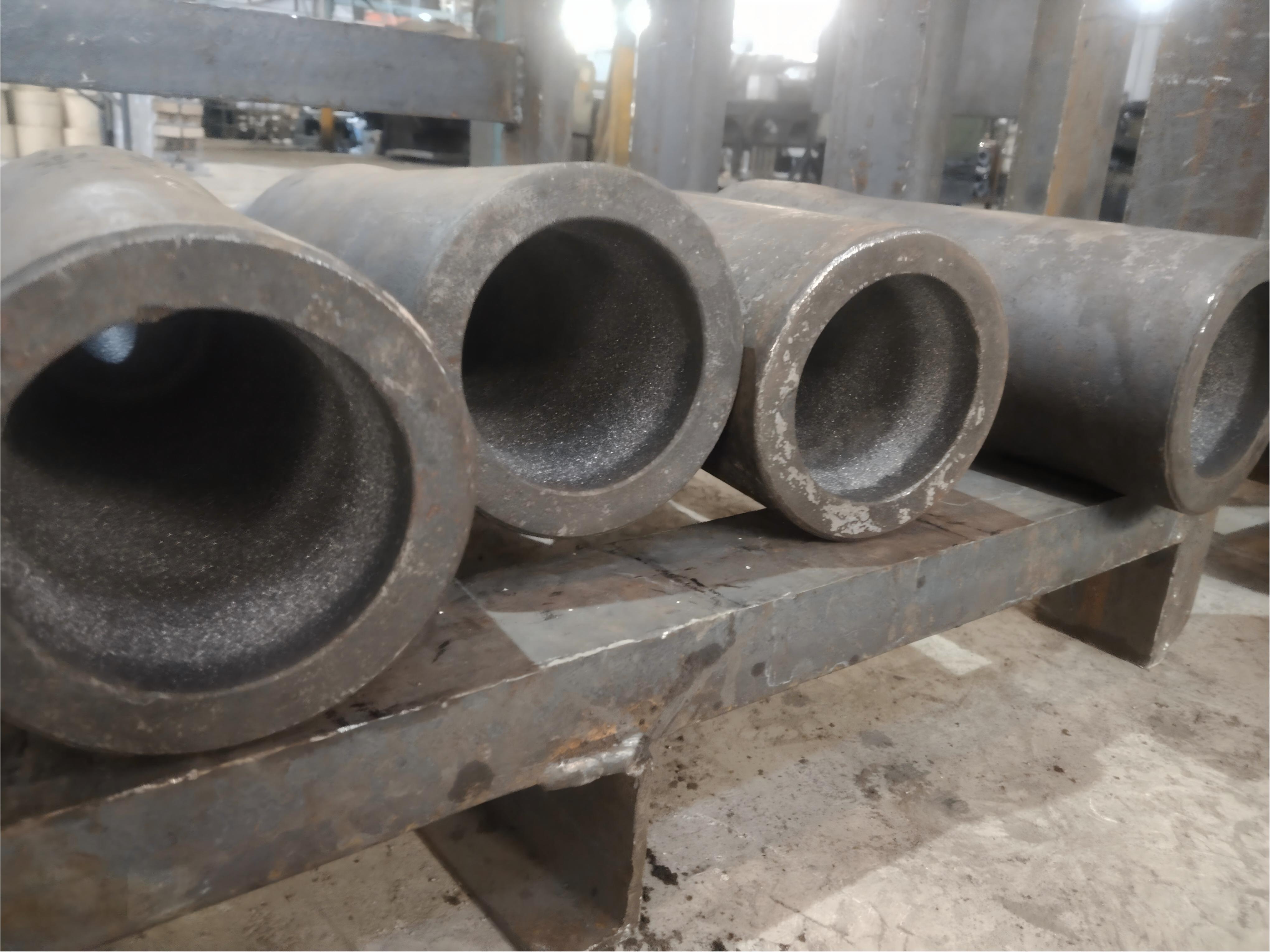

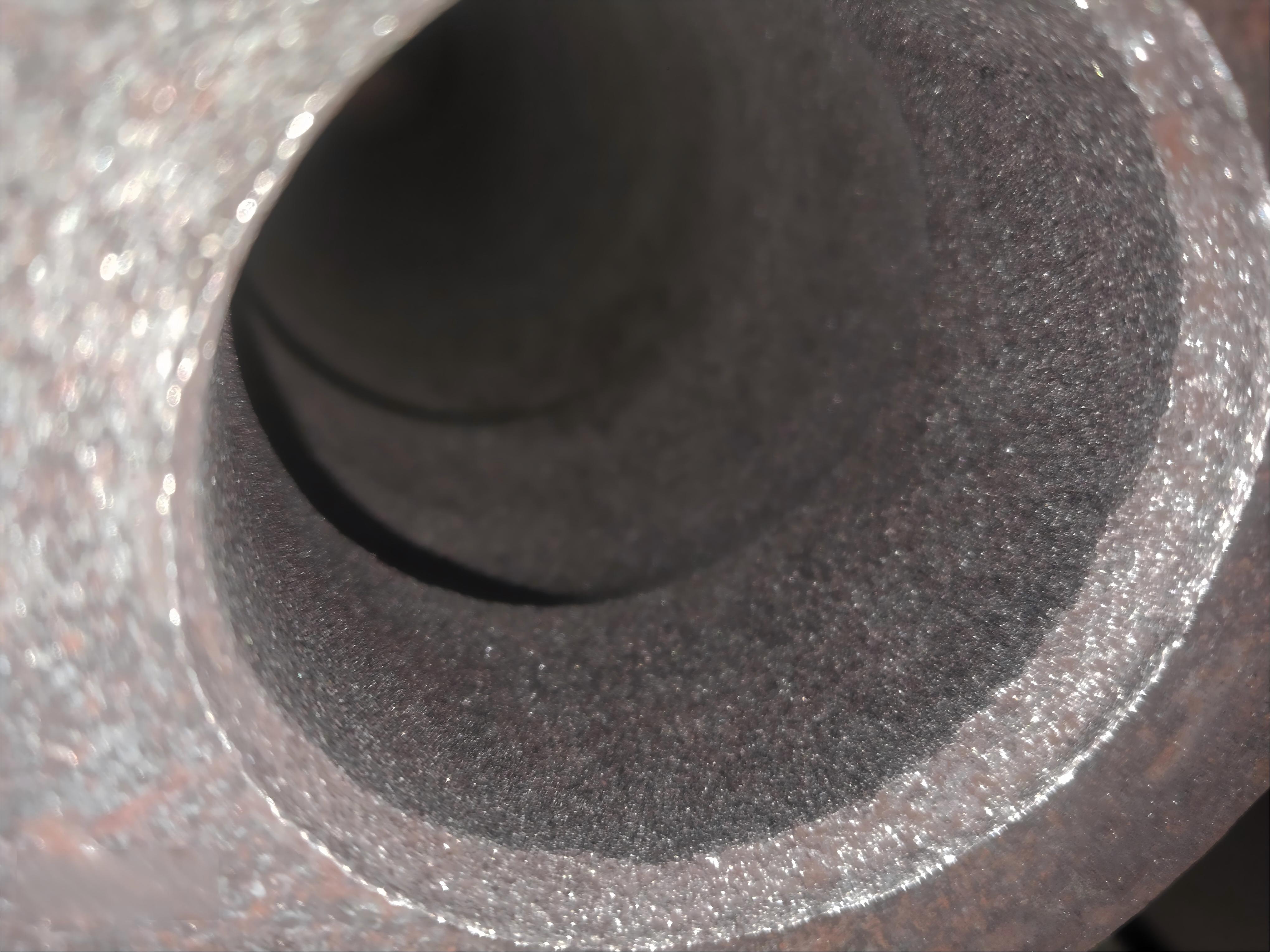

Artillery Shell Case Sand Blasting Effect 1 - Precision Surface Treatment

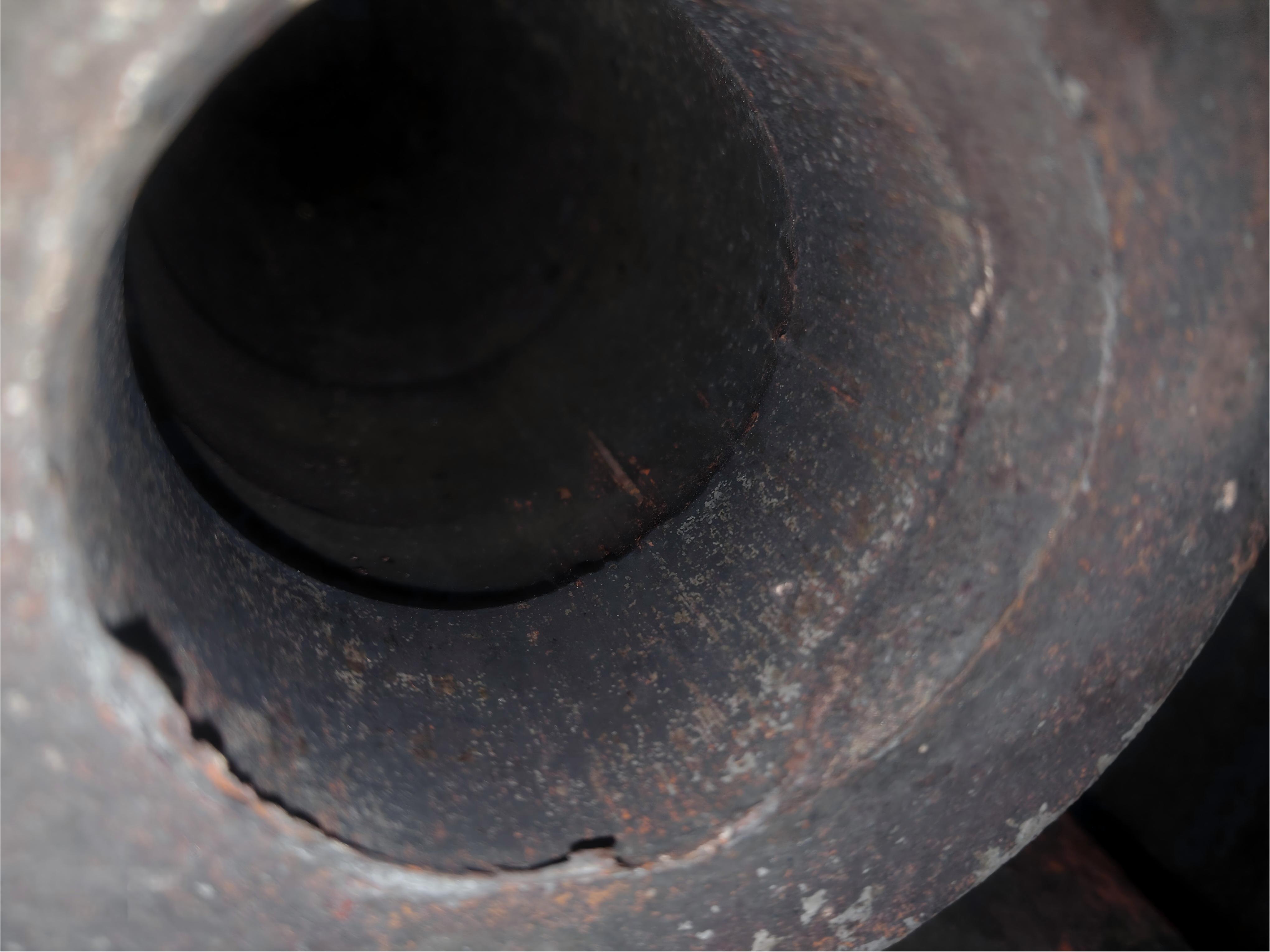

Artillery Shell Case Sand Blasting Effect 2 - Precision Surface Treatment
Artillery Shell Case Sand Blasting Effect 3 - Precision Surface Treatment

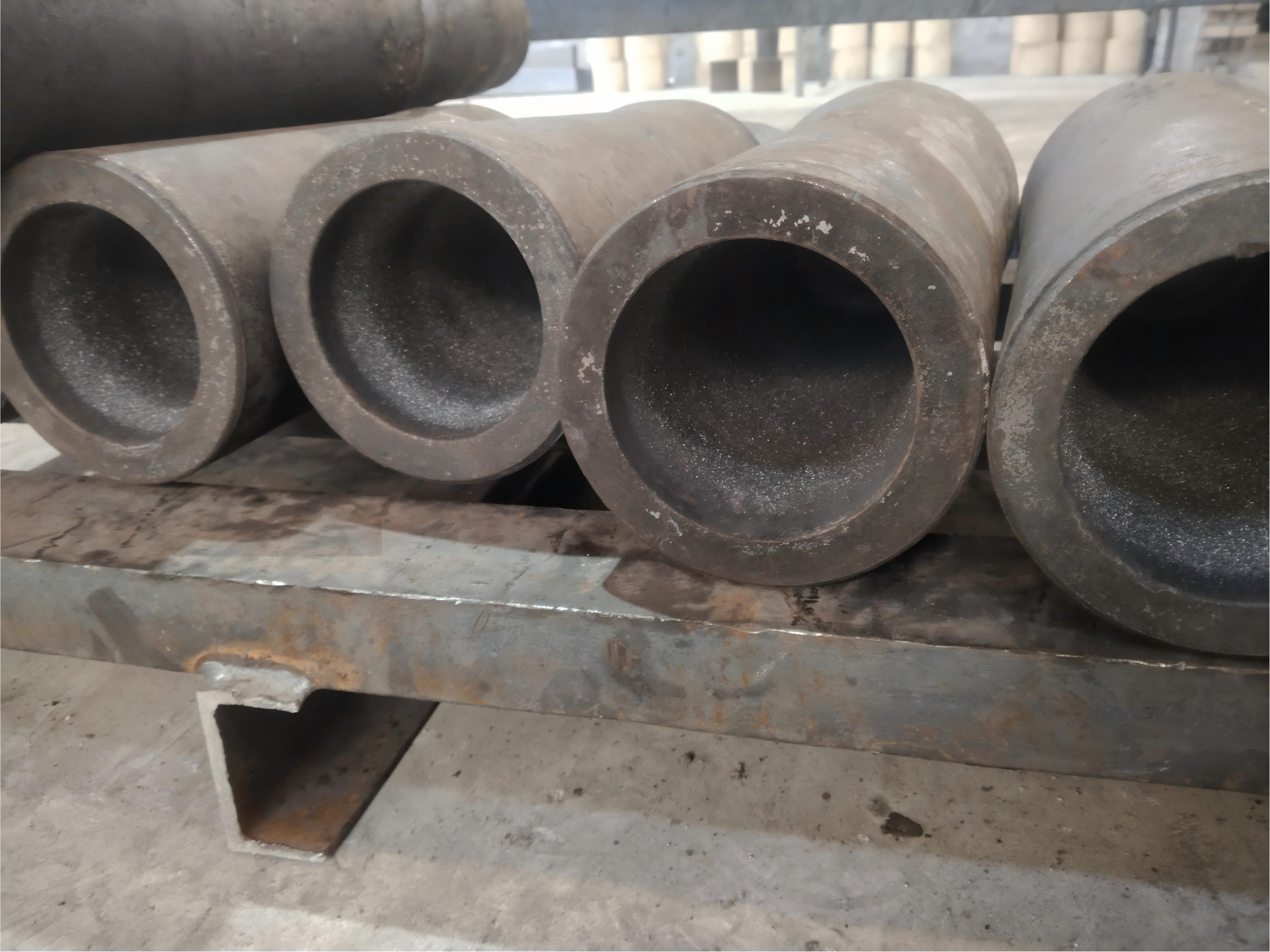

Artillery Shell Case Sand Blasting Effect 4 - Precision Surface Treatment

Frequently Asked Questions

What is the Artillery Shell Case Internal & External Blasting Machine?expand_more

It is a dual-process surface treatment machine that cleans both the outer surface and the inner cavity of cartridge-type workpieces in a single automated cycle. Oxide scale, welding slag and other impurities are removed to leave a clean metallic finish suitable for subsequent painting or coating. Unlike ordinary shell case machines that only treat the outside, this model combines compressed-air sand blasting for the inner cavity with centrifugal shot blasting for the outer surface, and is built for the thin wall and tight dimensional tolerance typical of cartridge cases.

Why does it use sand blasting inside and shot blasting outside?expand_more

The two processes suit different geometry. The inner cavity is narrow and deep, so a compressed-air sand blasting gun with a nozzle reaches the full bore at controlled pressure in the 0.4–0.7MPa range without damaging a thin wall. The outer surface is open and has a much larger area, so centrifugal shot blasting wheels deliver the coverage and throughput that air blasting cannot match on an external diameter. Combining them keeps internal quality and external productivity in one machine instead of two.

What workpieces can it process besides artillery shell cases?expand_more

The same platform handles any thin-walled cylindrical part that needs internal or external cleaning. That includes steel cylinders, acetylene cylinders and oxygen cylinders used in gas packaging, as well as cartridge cases for military ammunition, civilian hunting and sporting cartridges, and case refurbishment or restoration work.

What caliber range and how many workstations are available?expand_more

The QN-W series covers calibers from φ4.5mm to φ155mm. Station configuration is customizable from 1 to 8 stations, so throughput can be matched to the required output rather than forcing the batch size to fit a fixed machine.

How does it avoid deforming thin-walled shell cases?expand_more

The machine uses full-process flexible clamping: the workpiece is supported throughout loading, blasting and unloading rather than being gripped at a single point. Combined with controlled working pressure in the 0.4–0.7MPa range, this keeps case walls dimensionally stable through the whole cycle, which is the main failure mode of general-purpose blasting equipment applied to cartridge cases.

What surface quality and consistency can it achieve?expand_more

Surface cleanliness reaches Sa 2.0 to Sa 3.0 with roughness of Ra 0.8μm to Ra 6.3μm, matching different coating requirements. Inner cavity qualification rate is above 99%, and batch consistency is above 99.8% — the latter matters more than peak quality in ammunition production, because every case in a lot must behave the same way downstream.

Is loading, unloading and blasting fully automatic?expand_more

Yes. The machine performs automatic loading and unloading as well as automatic internal and external blasting, so the operator sets the parameters and the cycle runs without manual handling between stages. This reduces labour intensity and removes the operator-to-operator variation that manual blasting introduces.

What compressed air supply does the machine require?expand_more

Working pressure is 0.4–0.7MPa, with air consumption of 0.8–1.6m³/min per gun. Because consumption scales with the number of guns, compressor and air receiver sizing should be confirmed together with the final station configuration.

Which industries use this machine?expand_more

Primarily military ammunition manufacturing, civilian hunting and sporting cartridge production, and cartridge case refurbishment or restoration. The same capability also serves gas cylinder manufacturers and refurbishers who need the inner wall cleaned before coating or requalification.

Why is internal cleaning necessary if the outside already looks clean?expand_more

Residue inside the cavity — oxide scale, carbon and combustion products — prevents coating from bonding and can contaminate the propellant charge. External-only machines leave that layer in place. Treating both surfaces in one cycle is what allows the case to be recoated or reloaded with a predictable service life.

How much of the machine can be customized?expand_more

Station count (1 to 8), caliber range, nozzle configuration and clamping fixtures are all built to the workpiece drawing and required output. Because the platform is designed around cartridge-type geometry, adapting it to a new case size is a fixture and parameter change rather than a new machine design.
