Custom Sand Blasting Machine:Steel Pipe Internal Surface
Sand Blasting Machine
Advanced, high-performance internal surface cleaning solutions designed for metal pipes of all sizes, ensuring uniform cleaning, durability, and maximum efficiency.

boltQuick Answer
The Internal Pipe Sand Blasting Machine cleans the inner wall of steel pipes before welding or coating, removing oxide scale, rust, welding slag and old coatings. One to eight compressed-air spray guns on a rotating, axially travelling lance clean the full bore at 0.5–8m/min feed speed and up to 24m depth, reaching Sa 2.5–Sa 3 with an internal qualification rate of ≥99%. It handles DN50 to DN2000 carbon, stainless and alloy steel pipe, and relieves internal stress while restoring the metallic finish.
- Pipe diameter
- DN50 – DN2000
- Max cleaning depth
- 24 m
- Surface cleanliness
- Sa 2.5 – Sa 3
- Spray guns
- 1 – 8
Product Features
Multi-Specification Dimensions
Custom-designed based on fixed length, diameter specifications, and capacity requirements.
Matching Parameters
Equipped with 1–8 specialized internal nozzles. Working pressure 0.4–0.7 MPa, adjustable to pipe diameter and scale condition.
Workpiece Compatibility
Compatible with metal pipes ID φ20mm – φ2000mm and lengths from 0.5m to 24m.
Custom Blasting Design
Flexible shaft rotating nozzles for small ID, long-rod fixed/mobile for large ID, and dual-end synchronous feed for ultra-long pipes.
Electrical Adaptation
Supports global voltage standards. Integrated with Siemens/Mitsubishi PLC.
Environmental Dust Collection
Custom dust extraction system. Dust emission concentrations stably below 10mg/m³.
Roller Conveyor System
Effective widths 300mm to 2500mm. Optional V-type rollers or polyurethane wear-resistant sleeves.
Wear-Resistant Components
Mn13 high-manganese steel liners, Cr26 high-chromium alloy blades, Tungsten/Boron Carbide nozzle tips.
Abrasive Recovery System
Fully enclosed, multi-stage closed-loop recovery. Maximizes recycling and reduces consumption.
Technical Parameters
Precise technical data for the Steel Pipe Internal series. Scaling and customization available for all models.
| Item | Standard Value Range |
|---|---|
| Quantity of Spray Guns | 1~8 pcs |
| OD. Of Spray Nozzle | φ8mm~φ200mm |
| Working Pressure | 0.4~0.7MPa |
| Air Consumption | 3~6.1m³/min (per gun) |
| Nozzle Feed Speed | 0.5~8m/min |
| Nozzle Rotation Speed | 50~300r/min |
| Internal Qual. Rate | ≥99% |
| Max Cleaning Depth | 0.5~24m |

Need Custom Specs?
Our engineering team specializes in non-standard solutions. We can adapt dimensions, blasting intensity, and material handling to your workflow.
Consult Our Engineers arrow_forwardProduct Showcase

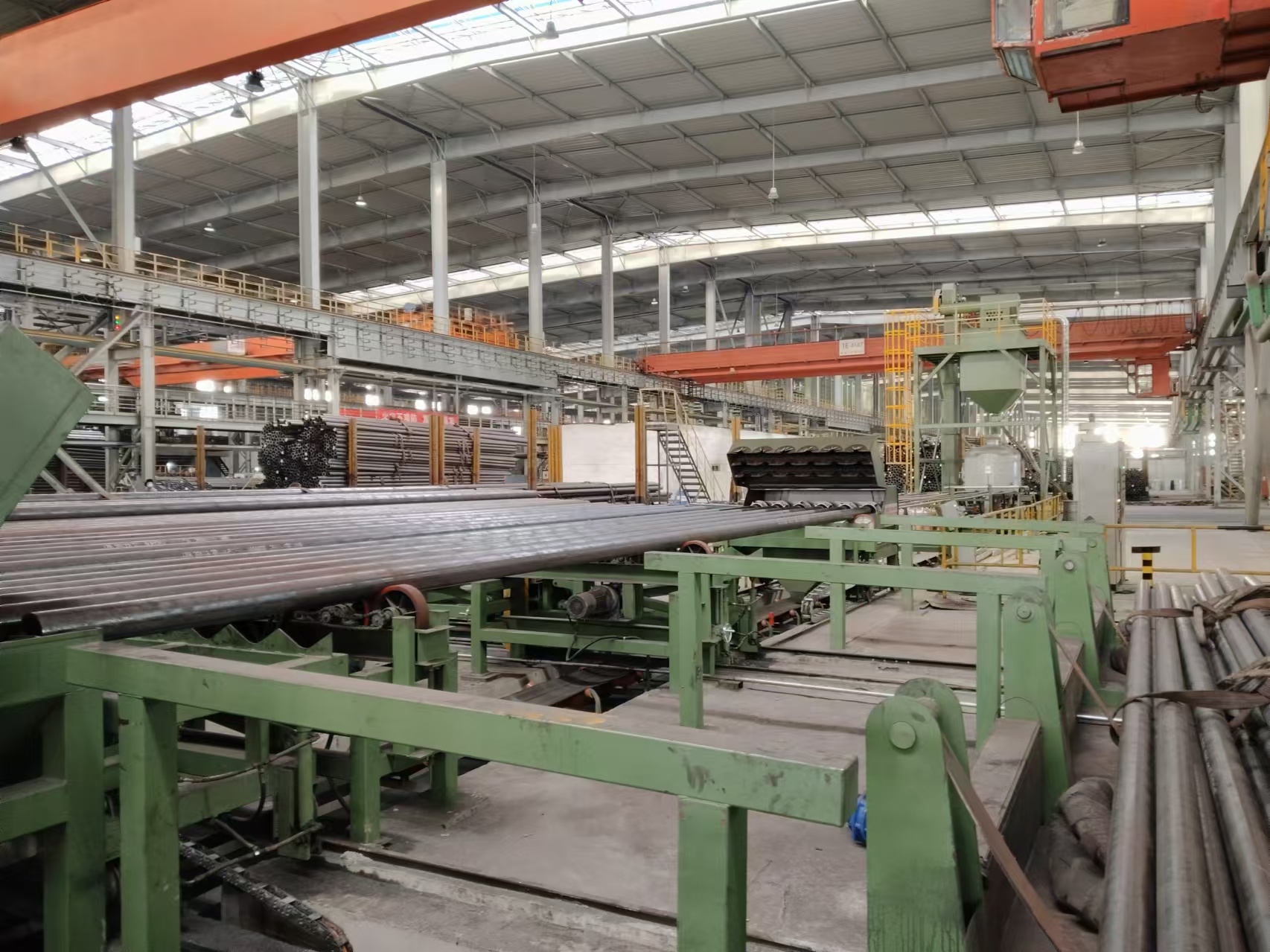

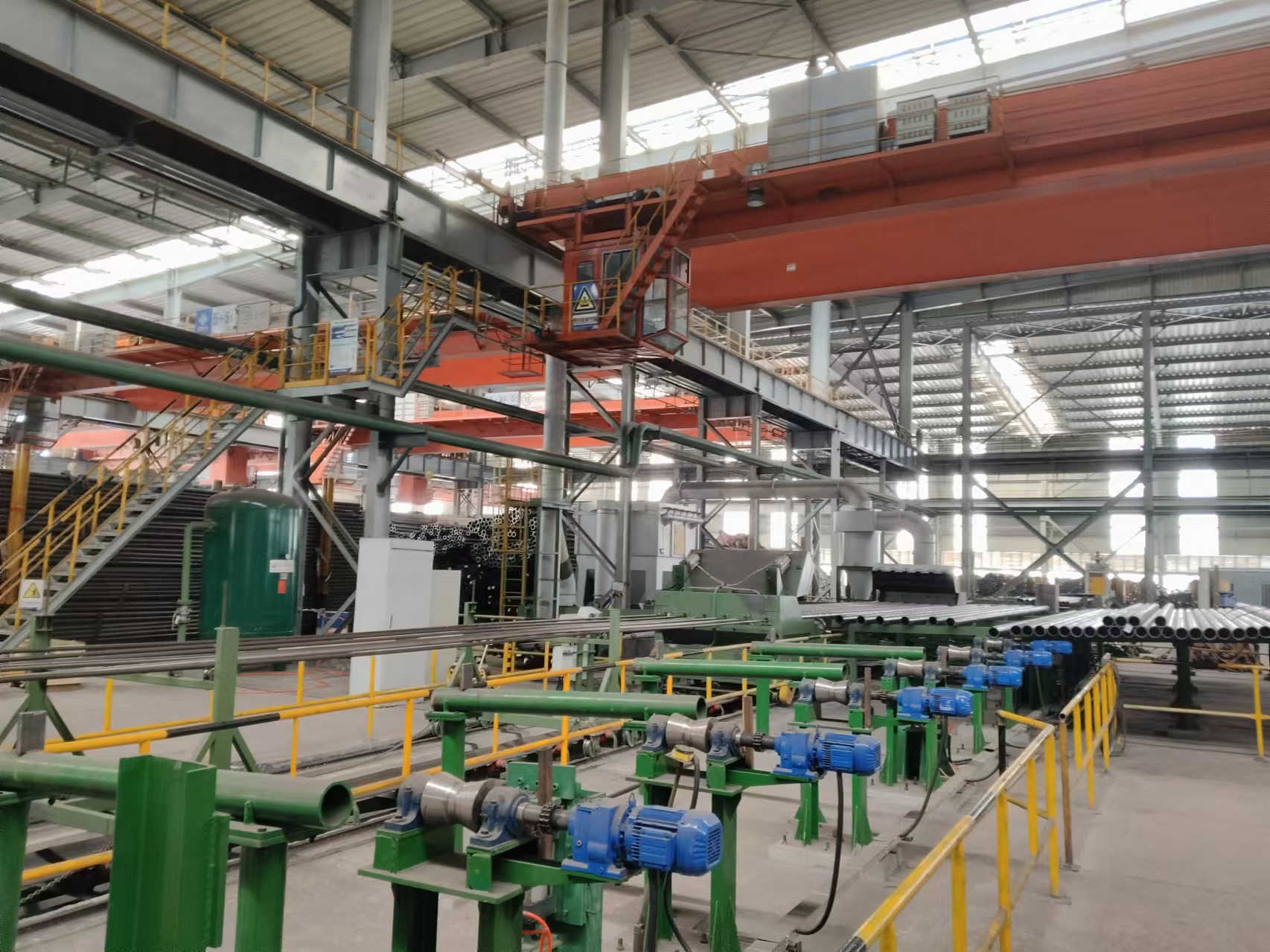

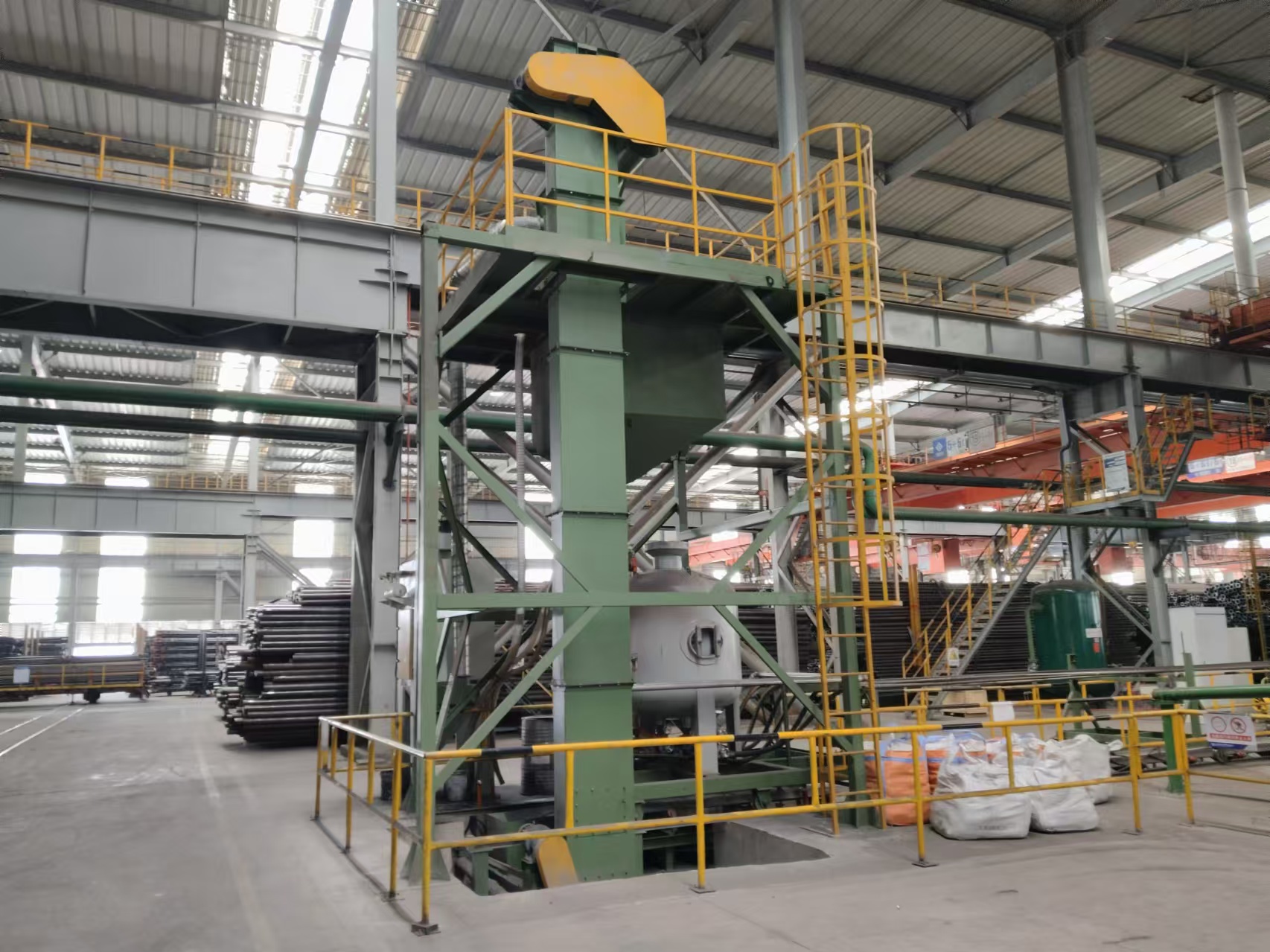

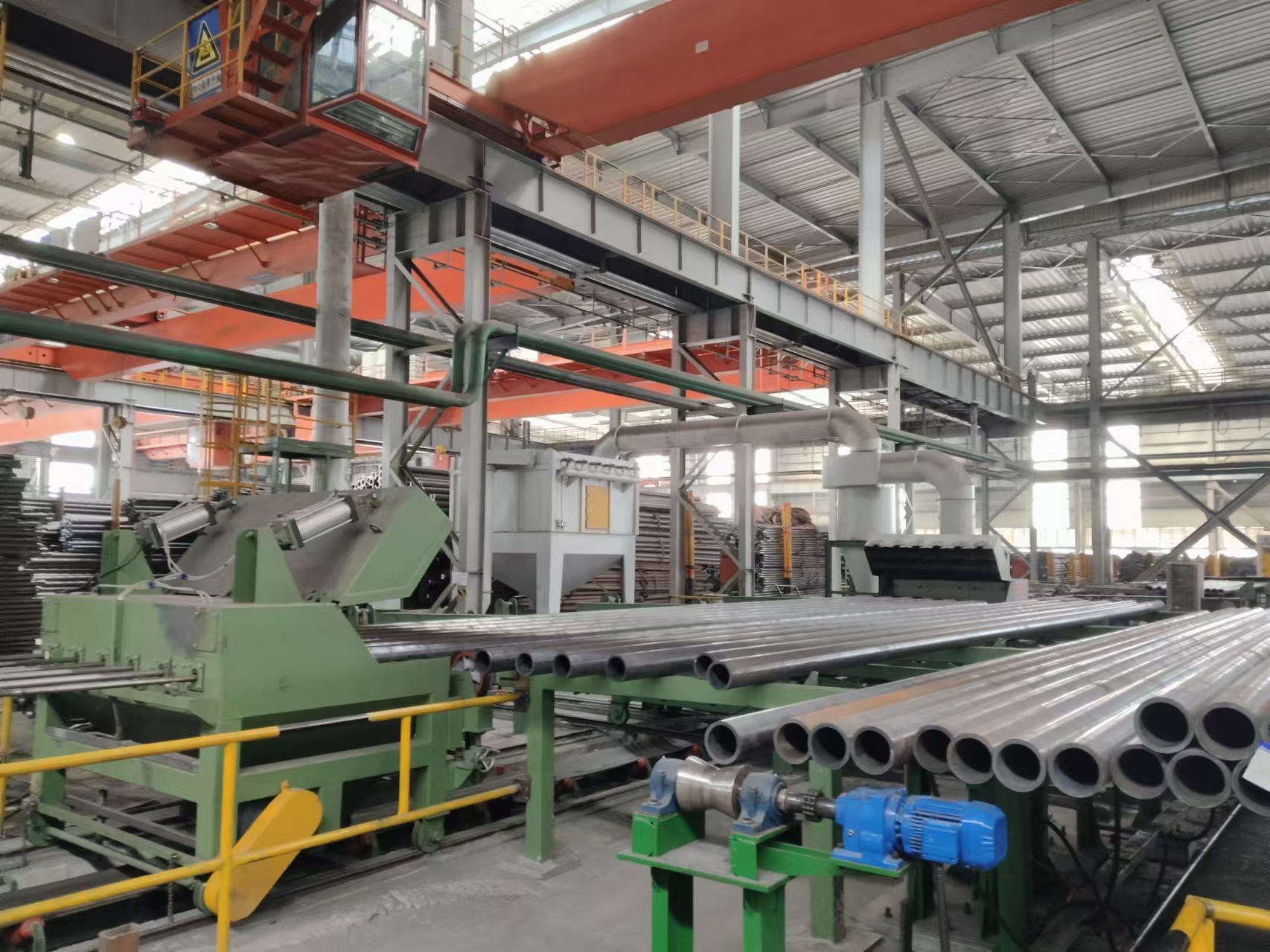

Action in Motion
Global Success Cases

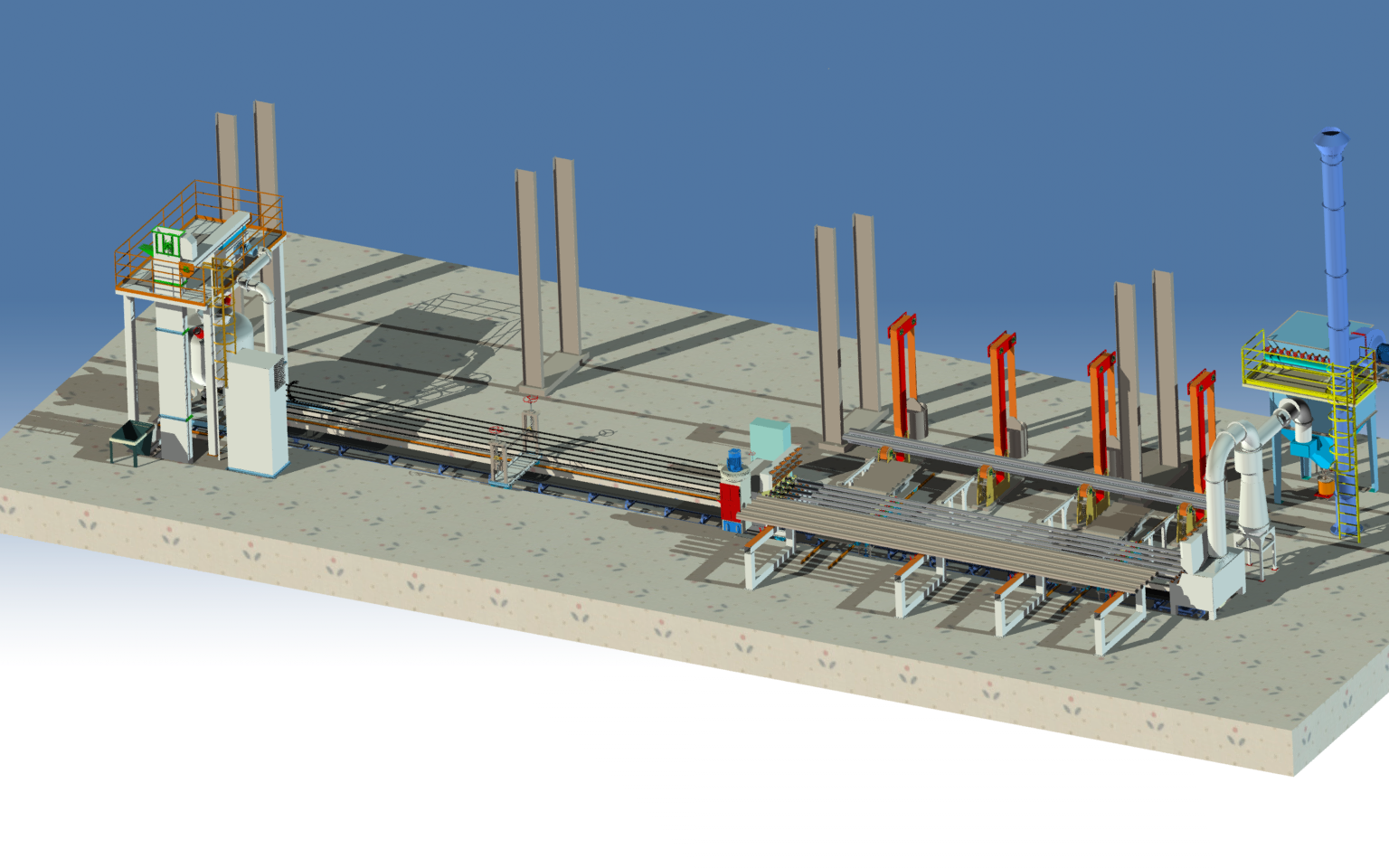

Oil Casing Pipes - Middle East
Achieved 100% internal wall coverage with dual-end synchronous feed.

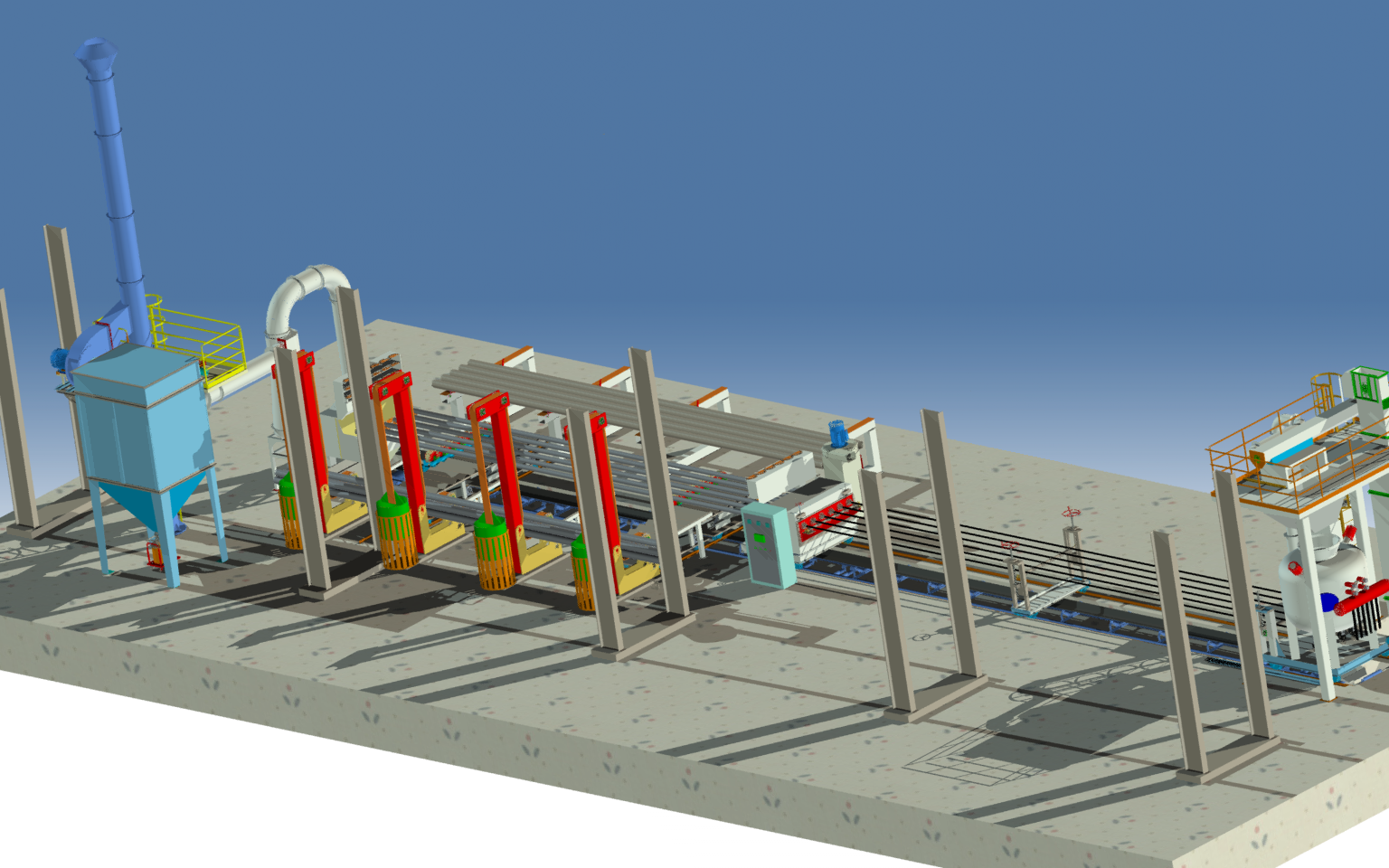

Seamless Steel Pipes - Asia
Flexible shaft rotating nozzles reaching depths up to 12m with zero blind spots.
Frequently Asked Questions
What does the internal pipe blasting machine do?expand_more
It cleans the inner wall of steel pipes before welding or coating. High-speed abrasive removes oxide scale, rust, welding slag and old coatings, restoring the metallic finish and improving coating adhesion. It also relieves internal stress and raises fatigue resistance, which is why it is standard equipment for pipeline anti-corrosion and pre-coating lines.
How does it clean the full inner circumference without dead zones?expand_more
The pipe is conveyed to the working station and positioned, then the spray guns blast the inner wall while the pipe rotates or the lance advances axially. The combination of rotation and axial travel gives 360° coverage along the entire bore length, including sections an external blasting machine physically cannot reach.
What pipe diameters and lengths can it handle?expand_more
The platform covers DN50 to DN2000 with a maximum cleaning depth of 0.5m to 24m, depending on lance configuration. Parameters are set from the pipe diameter and length so that coverage is uniform end to end rather than strongest near the entry.
What surface cleanliness can be achieved?expand_more
Rust removal reaches Sa 2.5 to Sa 3, meeting high-standard anti-corrosion coating requirements, with an internal qualification rate of ≥99%. The exact grade is set by feed speed, rotation speed and working pressure, and is confirmed against the coating specification before shipment.
How many spray guns are used and what compressed air supply is required?expand_more
Between 1 and 8 spray guns are fitted depending on pipe diameter and required throughput. Working pressure is 0.4–0.7MPa with air consumption of 3–6.1m³/min per gun, so a fully populated 8-gun configuration needs roughly 25–49m³/min of air. Compressor capacity must be sized against the final gun count, not the single-gun figure.
What nozzle sizes and travel speeds are available?expand_more
Spray nozzle outer diameters run from φ8mm to φ200mm. Nozzle feed speed is adjustable from 0.5 to 8m/min and rotation speed from 50 to 300r/min, so the same machine can run slowly for heavy scale on large bore pipe and quickly for light cleaning on smaller diameters.
Which pipe materials can it process?expand_more
Carbon steel, stainless steel and alloy steel are all supported. Because the process is mechanical rather than chemical, it does not introduce hydrogen or acid residue into the bore, which matters for stainless and for pipe destined for sour service.
What applications is it used for?expand_more
Pre-coating treatment for oil and gas, chemical and water supply or drainage pipelines; cleaning of structural steel pipes and pressure vessel tubes; internal cleaning of automotive drive shafts and hydraulic pipes on construction machinery; removal of old internal coatings in pipeline rehabilitation; and internal pretreatment for shipbuilding and offshore projects.
How is it different from acid pickling or external-only blasting?expand_more
Pickling leaves acid waste that must be treated, and it cannot be applied to an assembled or field-welded line. External blasting never reaches the bore at all. Mechanical internal blasting produces no waste liquid, can be run on site, and leaves a dry, coated-ready surface with the scale removed rather than chemically converted.
Can inspection equipment be integrated, and how much can be customized?expand_more
Cleaned pipes are unloaded automatically, and inspection devices can be integrated to evaluate cleanliness level in line. Gun count, nozzle size, lance length and conveying arrangement are all built to the pipe range and throughput required, so non-standard diameters and lengths are a configuration change rather than a new machine design.
