Custom Shot Blasting Machine:External Pipe
Shot Blasting Machine
High-efficiency external surface cleaning solutions designed for metal pipes of all sizes, ensuring complete coverage, durability, and maximum productivity.

boltQuick Answer
The Steel Pipe External Shot Blasting Machine cleans the outer wall of pipes continuously before welding or coating. Pipes rotate on V-rollers as they pass through the blast chamber, where multiple blast wheels throw abrasive at 60–100m/s from several angles for full 360° coverage, stripping rust, oxide scale and welding slag to Sa 2.5–Sa 3. Seven standard models cover φ30–2000mm, with φ16–2800mm quoted per application. Most configurations are pit-free, and elevator capacity reaches 30,000–120,000kg/h.
- Pipe diameter
- φ30 – 2000 mm
- Abrasive velocity
- 60 – 100 m/s
- Surface cleanliness
- Sa 2.5 – Sa 3
- Foundation
- Mostly pit-free
Product Features
Multi-Specification Dimensions
Custom-designed based on fixed pipe lengths, diameter specifications, and throughput requirements.
Matching Parameters
Equipped with twin high-efficiency blast wheels. Total abrasive flow ranges from 2×250 to 2×1000 kg/min depending on pipe diameter.
Workpiece Compatibility
Compatible with metal pipes OD φ30mm – φ2000mm and lengths from 0.5m to 24m.
Custom Blasting Design
Features a 360° wraparound multi-wheel layout with blast angles precisely calibrated between 15° and 75°.
Electrical Adaptation
Supports global voltage standards. Integrated with Siemens or Mitsubishi PLC.
Environmental Dust Collection
Custom dust extraction system. Dust emission concentrations stably below 10 mg/m³.
Roller Conveyor System
Effective widths 300mm to 2500mm. Optional V-type support rollers and polyurethane wear-resistant sleeves.
Wear-Resistant Components
Mn13 high-manganese steel liners, Cr26 high-chromium alloy blades, Tungsten/Boron Carbide nozzle tips.
Abrasive Recovery System
Fully enclosed, multi-stage closed-loop recovery. Maximizes recycling efficiency and lowers abrasive loss.
Technical Parameters
Seven standard models from QGW10 to QGW200, covering pipe diameters from φ30mm to φ2000mm. Scaling and customization available for all models.
| Model | QGW10 | QGW15 | QGW20 | QGW25 | QGW30 | QGW140 | QGW200 |
|---|---|---|---|---|---|---|---|
| Size of cleaning workpiece | φ30–100mm | φ50–150mm | φ50–200mm | φ50–250mm | φ50–300mm | φ152–1400mm | φ1000–2000mm |
| Abrasive flow rate | 2×250kg/min | 2×250kg/min | 2×250kg/min | 2×250kg/min | 2×250kg/min | 2×1000kg/min | 2×1000kg/min |
| Elevator lifting capacity | 30000kg/h | 30000kg/h | 30000kg/h | 30000kg/h | 30000kg/h | 120000kg/h | 120000kg/h |
| Separator separating capacity | 30000kg/h | 30000kg/h | 30000kg/h | 30000kg/h | 30000kg/h | 120000kg/h | 120000kg/h |
| Dust extraction air volume | 5000m³/h | 5000m³/h | 5000m³/h | 6000m³/h | 6000m³/h | 10000m³/h | 12000m³/h |
| Power | 50kW | 50kW | 50kW | 50kW | 50kW | 115kW | 127kW |
Values are reference figures for standard configurations. Pipe diameter range, throughput and blast intensity can be adapted to your production line.

Need Custom Specs?
Our engineering team specializes in non-standard solutions. We can adapt dimensions, blasting intensity, and material handling to your workflow.
Consult Our Engineers arrow_forwardProduct Showcase

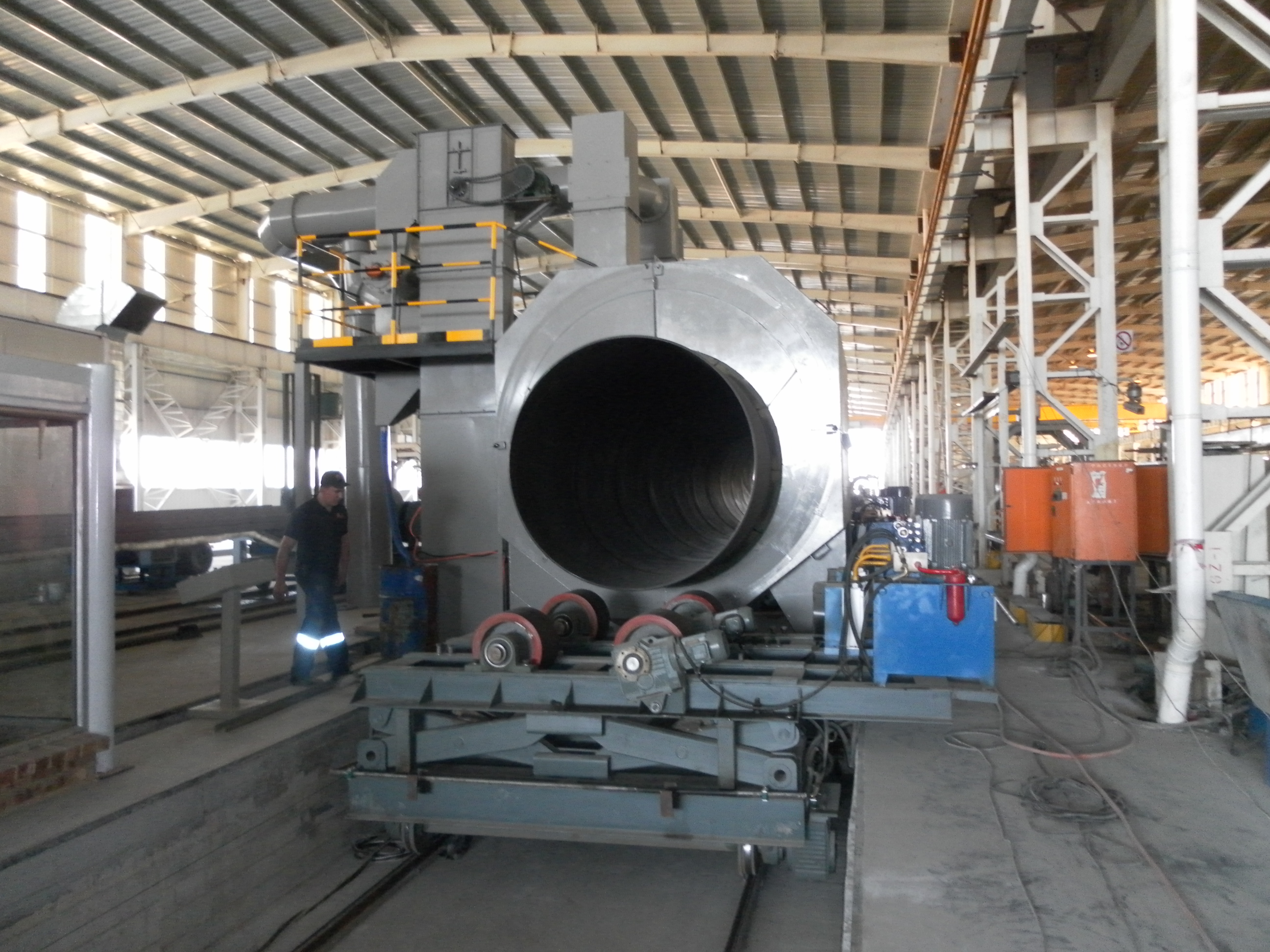

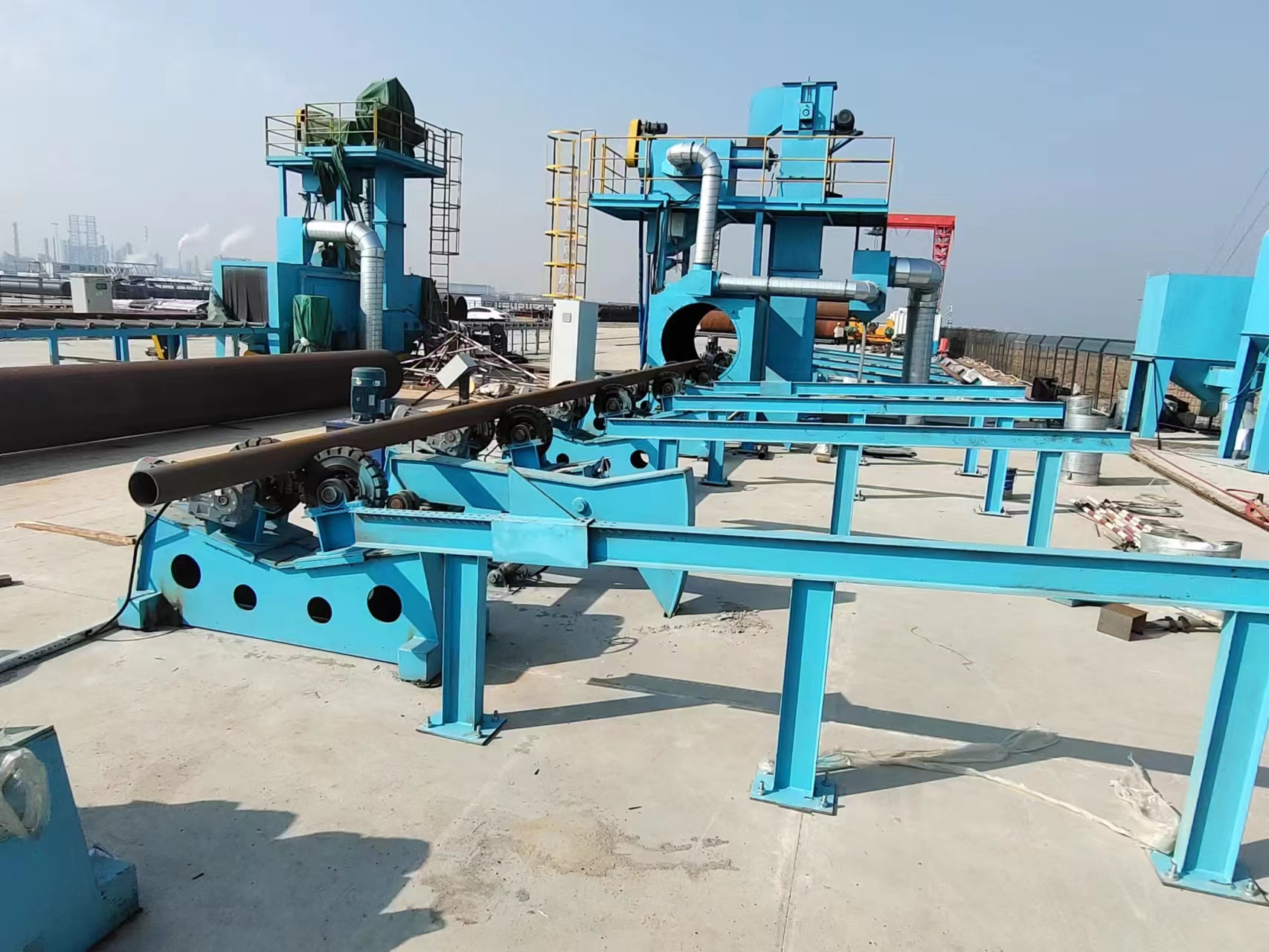

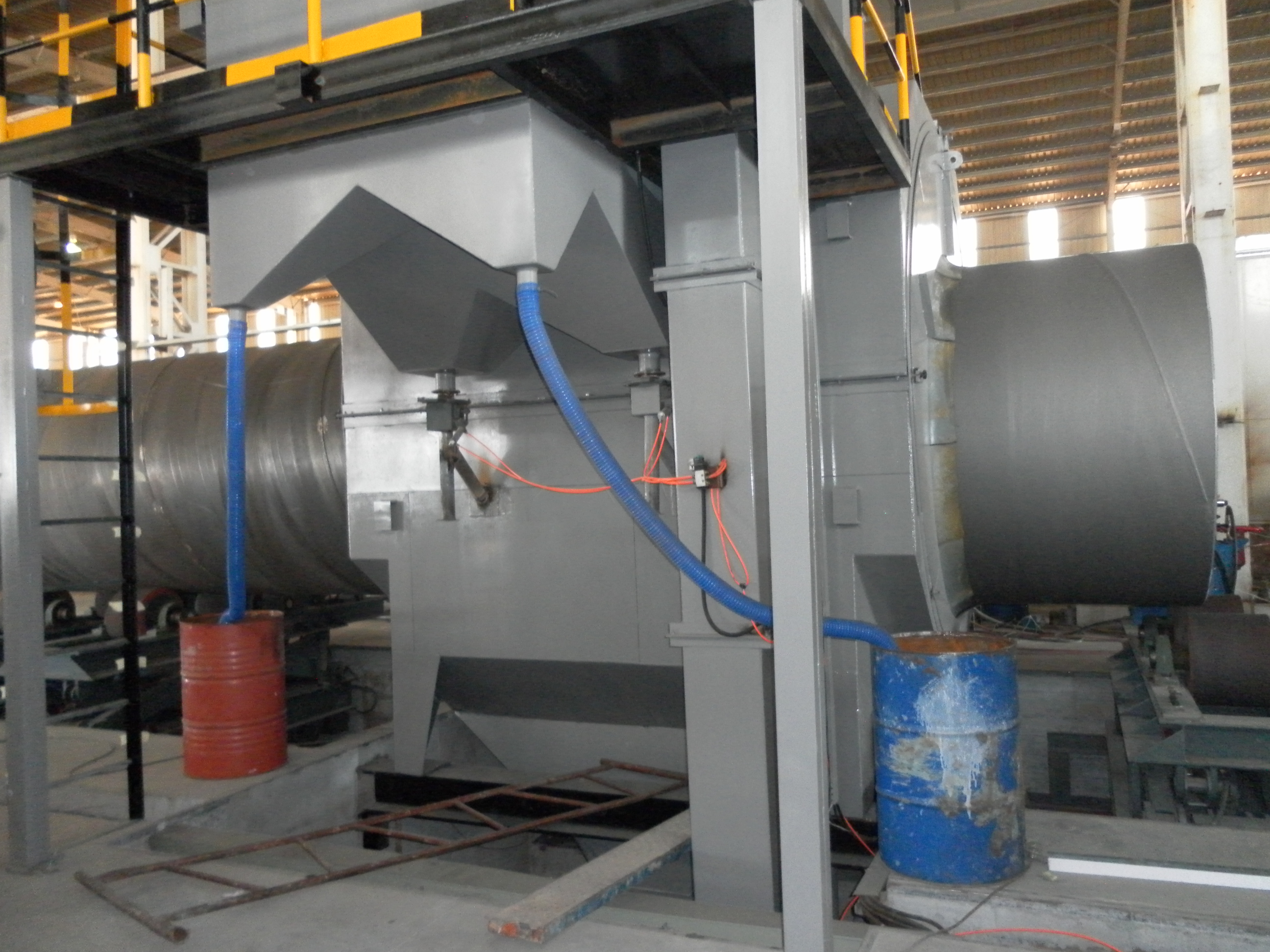

Action in Motion

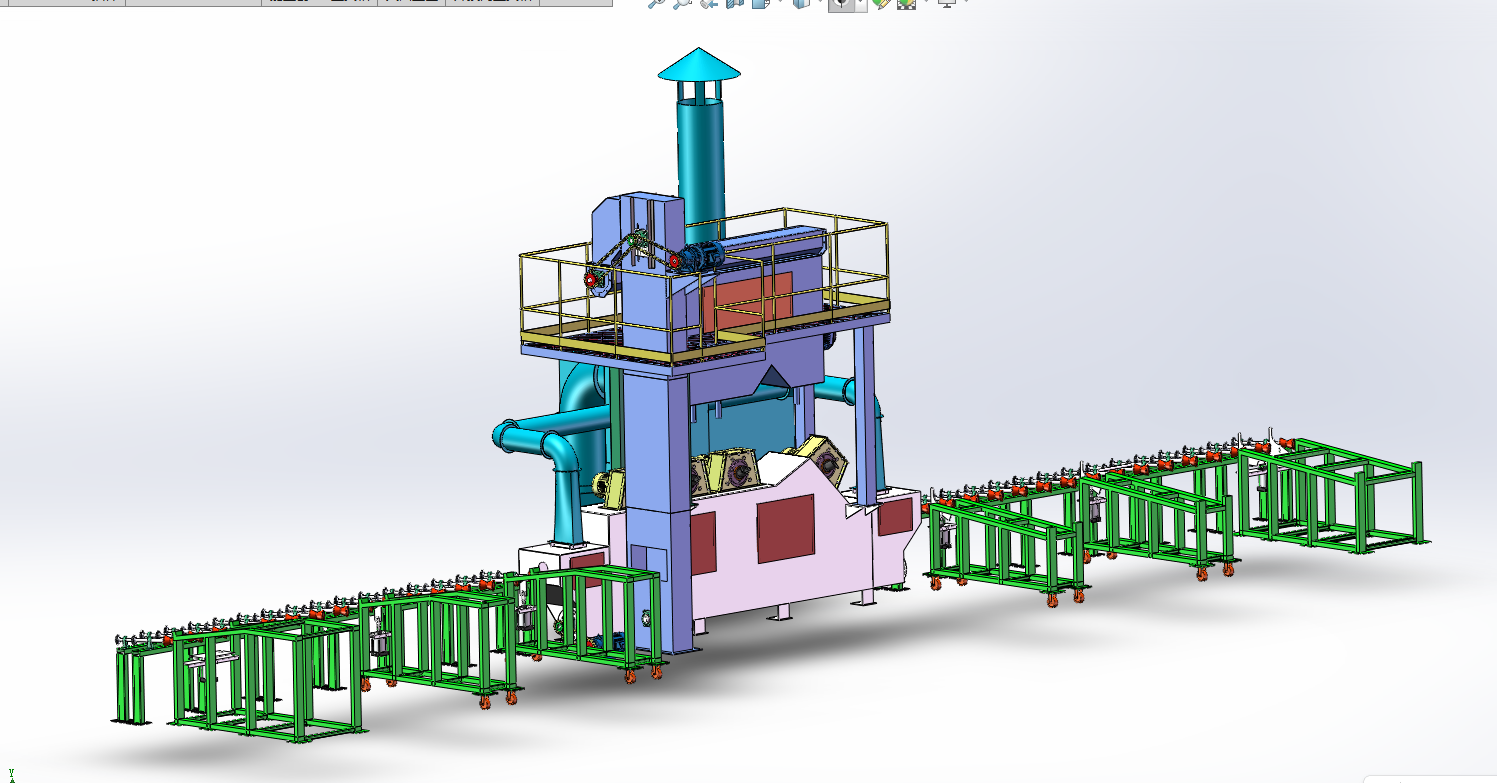

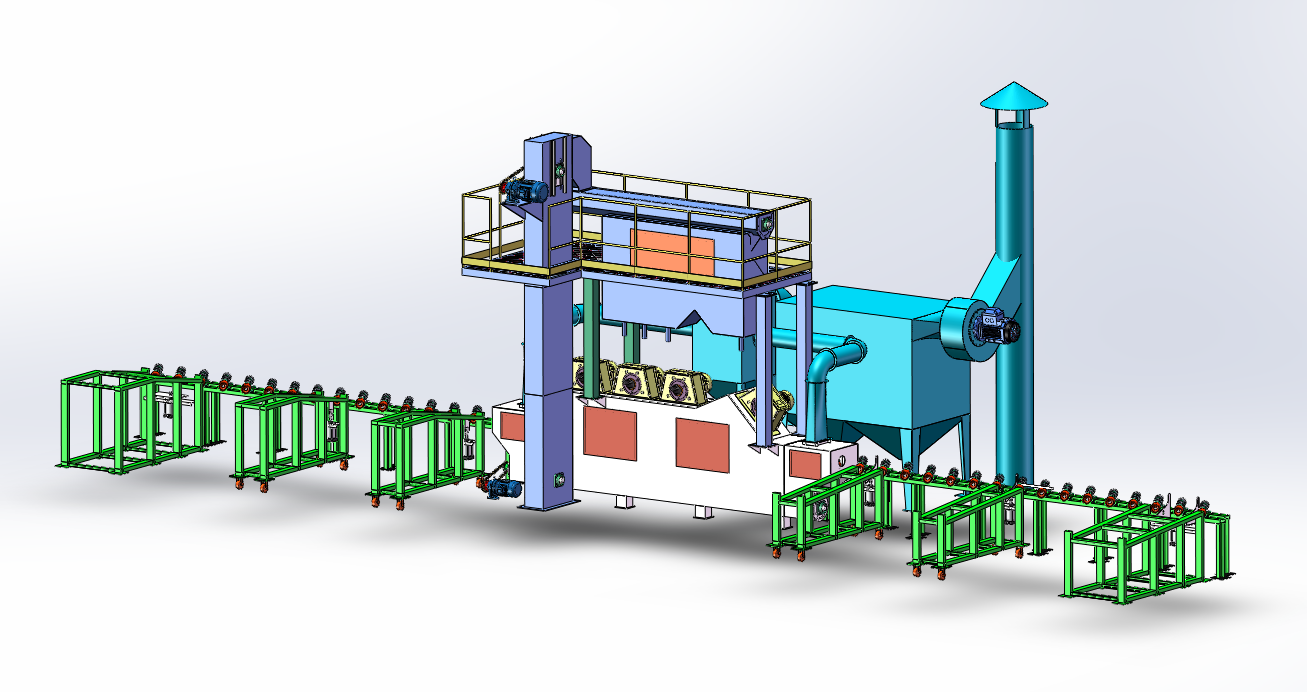

Industrial 3D Rendering


Frequently Asked Questions
What does the external pipe shot blasting machine do?expand_more
It continuously blasts the outer surface of steel pipes before welding or coating, removing rust, oxide scale, welding slag and other contaminants. It is the standard pretreatment step ahead of coating and anti-corrosion work for seamless pipe, welded pipe and spiral pipe, and it also applies a compressive stress layer that improves fatigue and corrosion resistance.
How does it clean the whole circumference without dead spots?expand_more
Pipes are carried on V-rollers or supporting wheels that both advance and rotate the workpiece at constant speed through the blast chamber. While the pipe turns, multiple blast wheels throw abrasive from several angles at 60–100m/s. The combination of rotation and multi-angle placement covers the full 360° of the outer wall and keeps surface roughness consistent along the length.
What pipe diameters and lengths can the machine handle?expand_more
Seven standard models cover φ30mm to φ2000mm, from QGW10 for small tube up to QGW200 for large diameter line pipe. The platform is customized for smaller and larger bores, with φ16mm to φ2800mm quoted per application. Long pipes pass through integrally rather than being cut to length first, which is what makes continuous production possible.
What surface cleanliness can be achieved?expand_more
Typical results are Sa 2.5 to Sa 3, which satisfies high-standard anti-corrosion coating systems. Cleanliness and roughness are controlled through abrasive size, blast wheel power, and line speed, and the target is agreed against your coating specification before the machine is configured.
How many blast wheels and how much abrasive is circulated?expand_more
Standard configurations use two blast wheels, with total abrasive flow from 2×250kg/min on the smaller models to 2×1000kg/min on QGW140 and QGW200. Elevator lifting and separator capacity are 30,000kg/h on the small models and 120,000kg/h on the two largest, matching the higher circulation rate of the large-diameter machines.
What power and dust extraction air volume is required?expand_more
Total power ranges from 50kW on QGW10 through QGW30, to 115kW on QGW140 and 127kW on QGW200. Dust extraction air volume is 5,000–6,000m³/h on the small models and 10,000–12,000m³/h on the two largest. A pulse cartridge dust collector handles the exhaust so that emission stays within local standards.
Does the machine require a foundation pit?expand_more
Most configurations are pit-free, which keeps civil works and infrastructure investment low and makes the line easier to relocate. Only specific large-diameter layouts need a shallow pit, and that is confirmed at the drawing approval stage together with the conveyor height and foundation loads.
Which pipe types and industries is it used for?expand_more
Seamless pipe, welded pipe, spiral welded pipe and galvanized pipe for steel structures. Typical users are oil and gas transmission pipeline coating plants, urban water supply and drainage pipe producers, thermal pipeline manufacturers, plus bridge, wind power and engineering machinery fabricators that need surface strengthening before coating.
How does it compare with acid pickling or manual cleaning?expand_more
There is no pickling waste liquid and no acid disposal cost, and the process runs dry and continuously instead of in batches. Throughput is dozens of times higher than manual cleaning, and because pipe rotation and wheel placement are fixed by the machine, every pipe in a run gets the same treatment rather than depending on operator technique.
What does surface strengthening mean in practice?expand_more
The impact of the abrasive forms a compressive stress layer on the outer wall instead of only removing material. In service this layer resists crack initiation, which raises fatigue life and slows corrosion under coating. For bridge, wind power and machinery applications this is often as important as the cleanliness grade itself.
How much can the machine be customized?expand_more
Blast wheel count and power, conveyor speed, chamber opening, dust extraction capacity and inlet and outlet conveying are configured to the pipe range and required throughput. Because the machine is built around pipe geometry, adding a new diameter or wall thickness is a configuration and parameter change rather than a new design.
