Custom Shot Blasting Machine:Roller Conveyor Shot Blasting Machine

Qingdao Jinwo Machinery Manufacturing Co., Ltd. delivers Advanced Custom Solutions of Roller Conveyor Shot Blasting Machines—the industry standard for metal surface preparation.

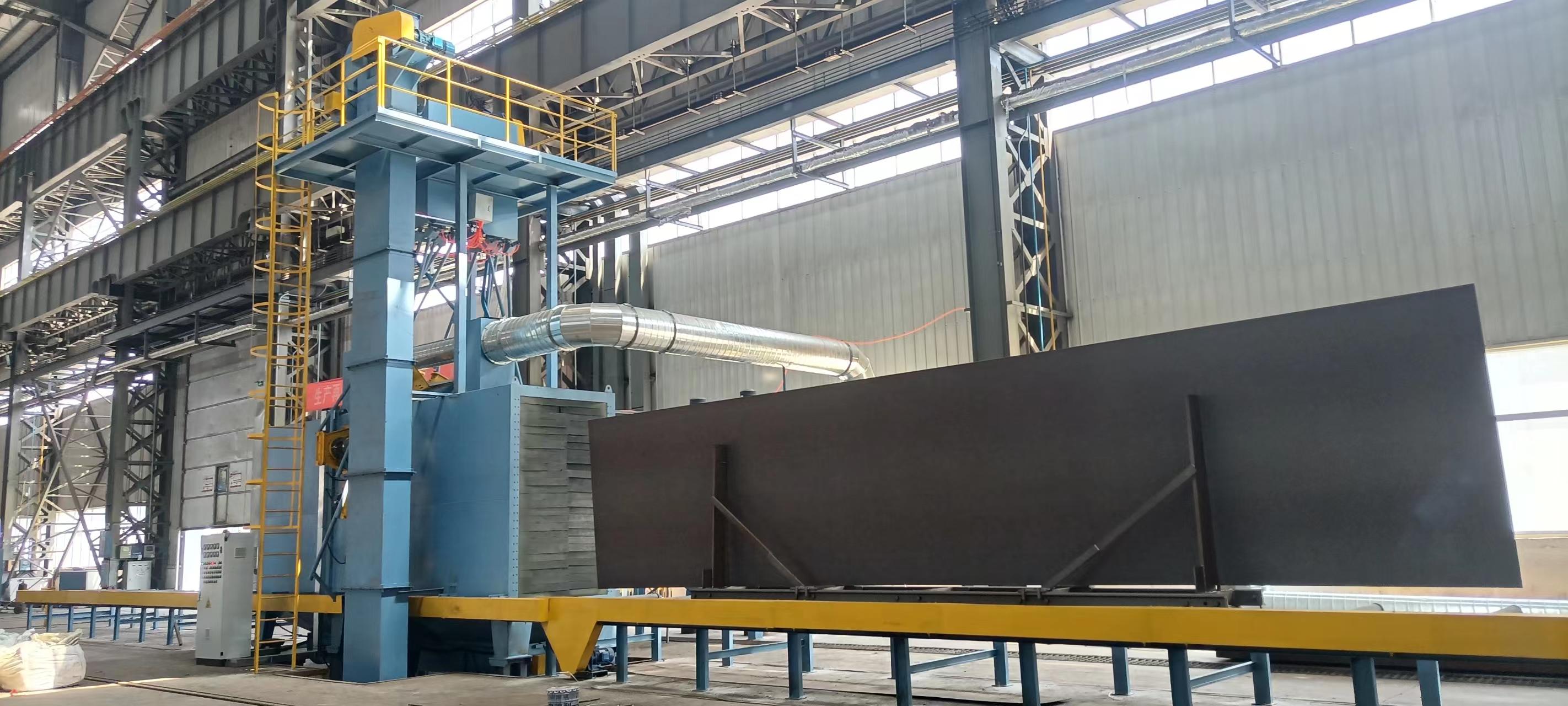

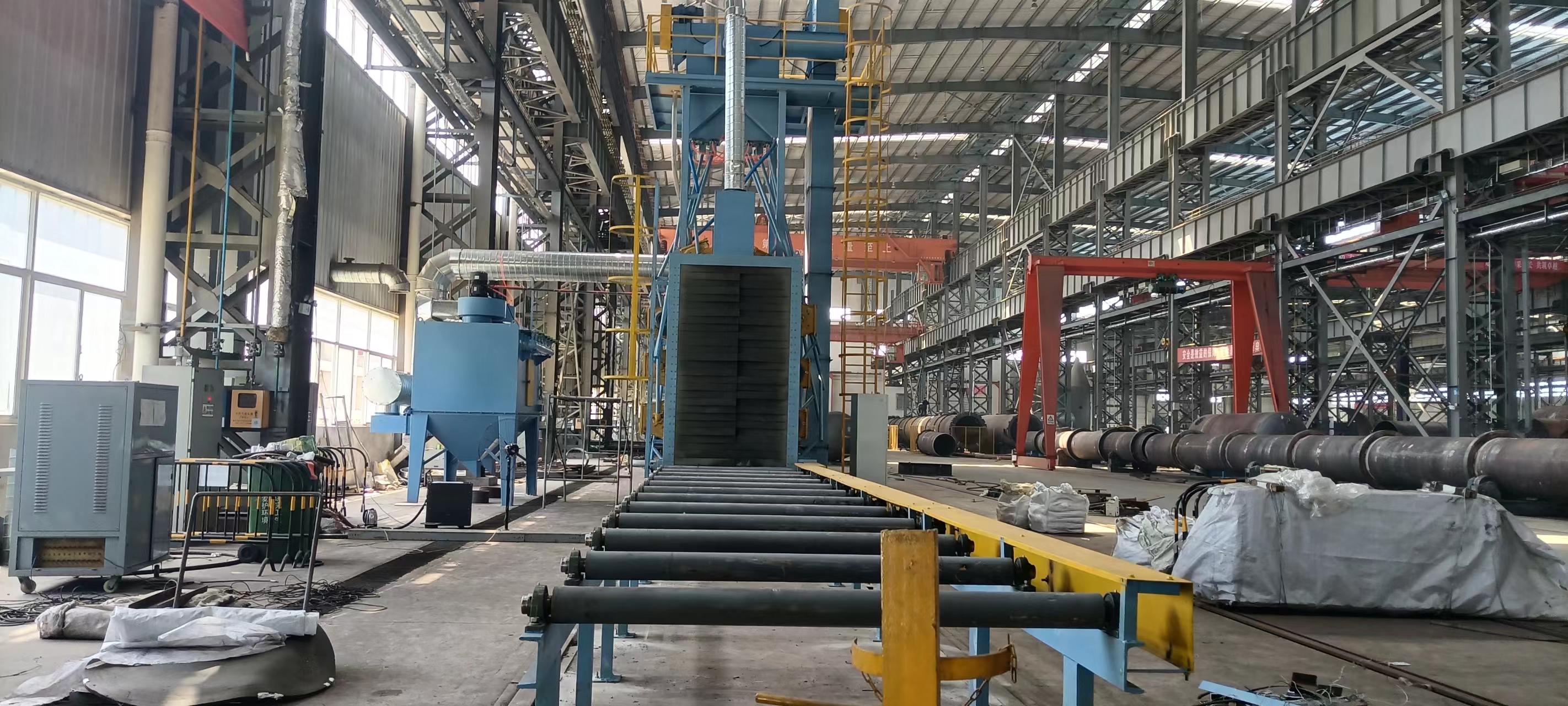

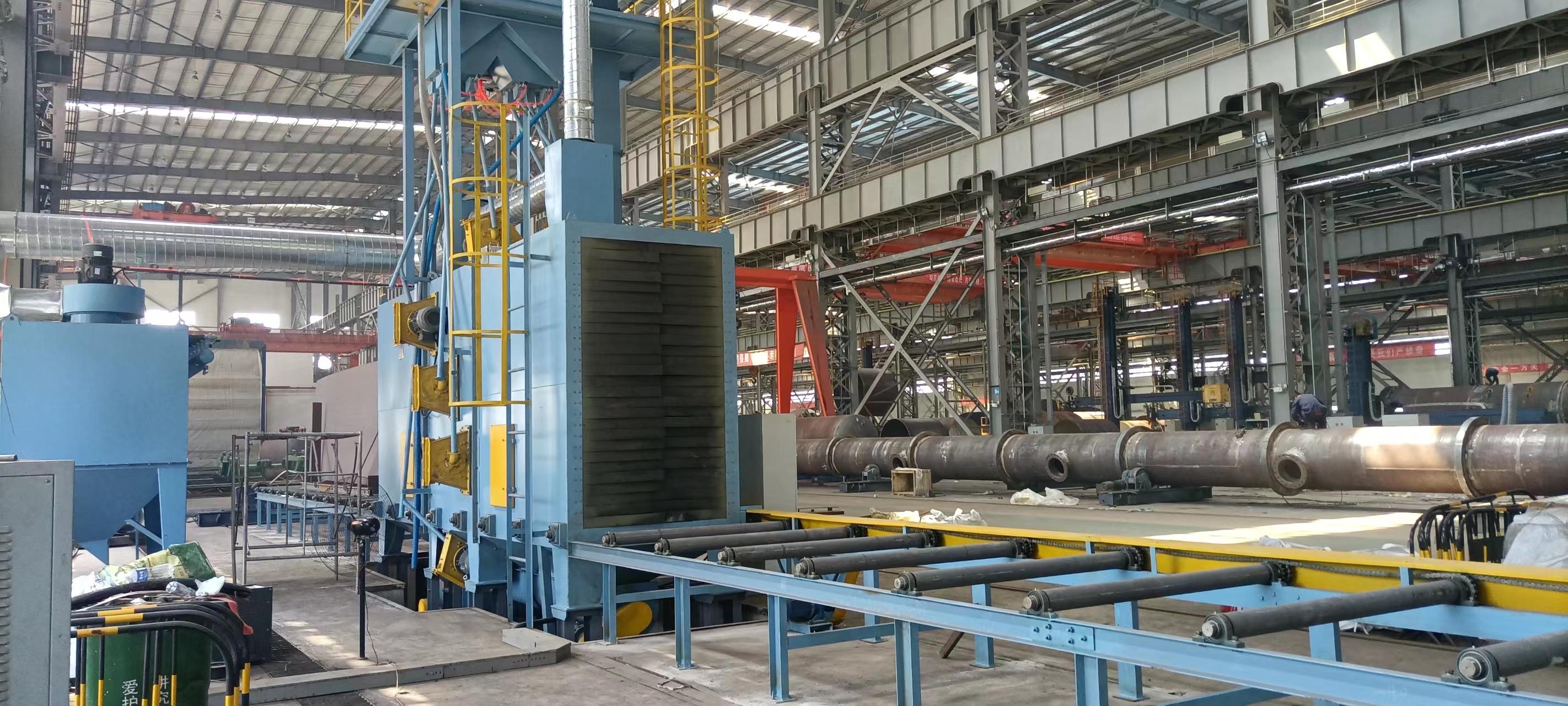

Qingdao Jinwo Custom Roller Conveyor Shot Blasting Machine for Heavy Duty Metal Surface Preparation
20+ Years
Engineering Team Experience

boltQuick Answer

A roller conveyor shot blasting machine is a continuous, fully automatic line that cleans steel structures such as H-beams, box columns and steel plates. Workpieces pass through the blast chamber on a stepless roller conveyor while 4 to 8 high-efficiency blast wheels treat all surfaces, reaching Sa 2.5–Sa 3.0 (ISO 8501-1). Eight standard models cover working widths of 800mm to 4000mm, workpiece thickness of 3–110mm and lengths up to 18m, with 78–293.6kW of total power.

Working width
800 – 4000 mm
Standard models
8 (Q698 – Q6940)
Surface cleanliness
Sa 2.5 – Sa 3.0
Workpiece thickness
3 – 110 mm

Product Features

straighten

Multi-Specification Dimensions

Standard working widths from 800mm to 4000mm, with full customization for larger equipment.

sync

Matching Parameters

Expertly synchronized load capacity and processing speed for maximum efficiency.

view_in_ar

Custom Blasting Design

Equipped with 4 to 8 blast wheels on standard models, using 3D simulation for optimal coverage; custom configurations can extend further.

settings_input_component

Electrical Adaptation

Integrated Siemens or Mitsubishi PLC systems with multi-voltage support.

filter_alt

Environmental Protection

High-efficiency Dust Collection Systems ensuring eco-friendly operations.

linear_scale

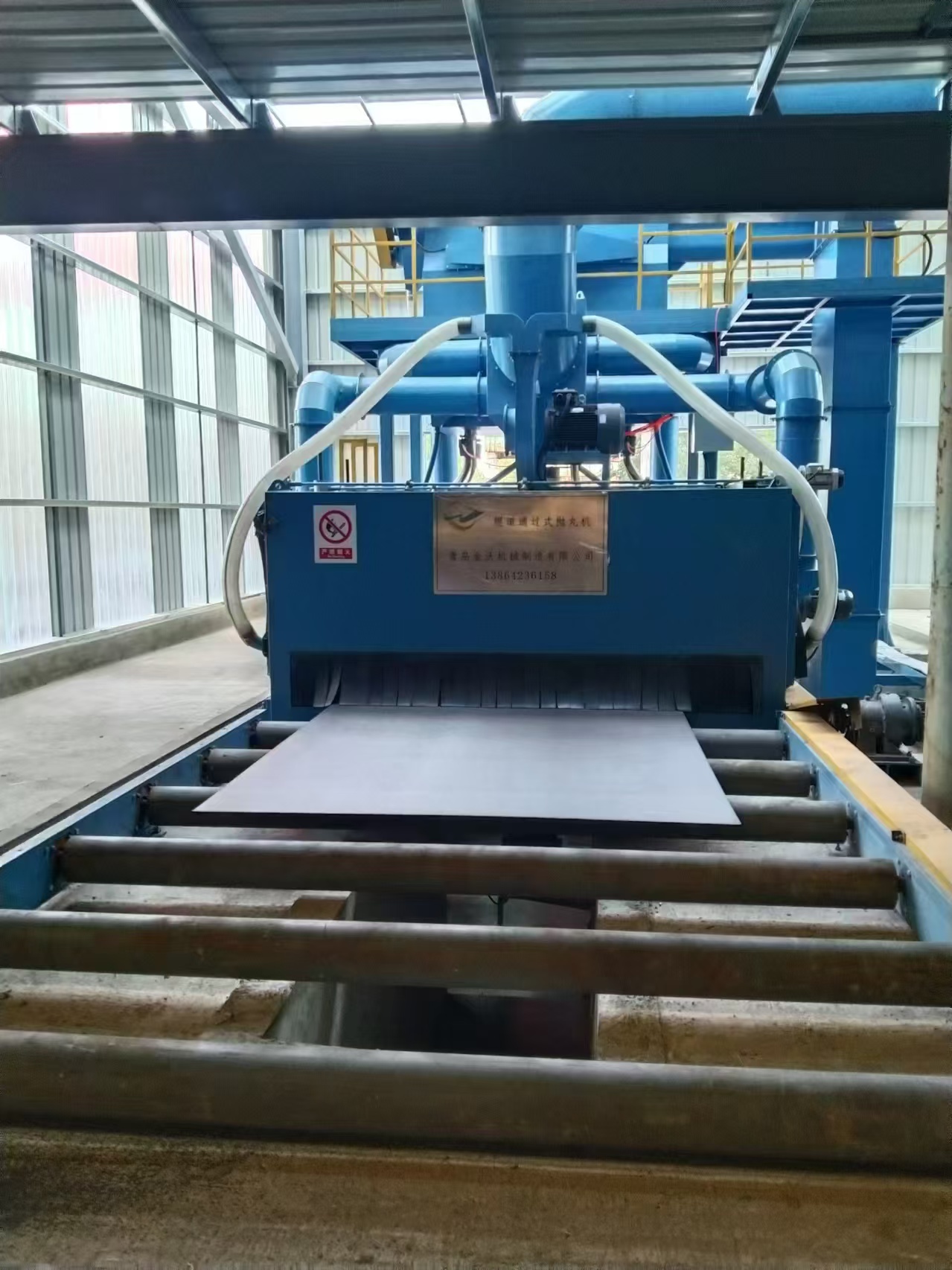

Roller Conveyor System

Features adjustable spacing and heavy load support up to 4t/m.

shield

Wear-Resistant Parts

Utilizes high-grade Mn13 protective liners for extended equipment life.

sync_alt

Abrasive Recovery

Advanced separation technology achieving >95% abrasive recycling.

bolt

Energy Efficiency

Optimized blast wheel positioning reducing energy consumption by up to 20%.

Technical Parameters

Eight standard models from Q698 to Q6940. Scaling and customization available for all models.

ModelQ698Q6910Q6912Q6915Q6920Q6925Q6930Q6940
Working width800mm1000mm1200mm1500mm2000mm2500mm3000mm4000mm
Feeding inlet size (W×H)800×1600mm1000×400mm1200×400mm1500×400mm2000×400mm2500×800mm3000×800mm4000×400mm
Workpiece length1200–12000mm1200–12000mm3000–6000mm3000–12000mm3000–12000mm3000–12000mm3000–12000mm3000–18000mm
Roller conveyor speed (stepless)0.5–4m/min0.5–4m/min0.5–4m/min0.5–4m/min0.5–4m/min0.5–4m/min0.5–4.5m/min2–8m/min
Workpiece thickness3–60mm4–60mm3–60mm3–60mm4–60mm4–60mm4–110mm3–100mm
Profile size range——T<20 × W<160T<20 × W<160T<20 × W<160T<20 × W<160T<30 × W<300T<30 × W<300
Abrasive flow rate8×180kg/min8×200kg/min4×250kg/min6×250kg/min6×250kg/min6×250kg/min6×360kg/min8×360kg/min
Abrasive first loading quantity4000kg4000kg4000kg4500kg4500kg4500kg8000kg11000kg
Roll brush adjusting height200mm200mm200mm350mm450mm450mm850mm900mm
Dust extraction air volume17560m³/h12000m³/h17560m³/h19000m³/h19550m³/h27758m³/h28050m³/h38000m³/h
Pit depth below floor level——1616mm2257mm2800mm2535mm4370mm4370mm
Total power (excl. dust collector)78.3kW78kW78.3kW130kW156.6kW224.55kW204.8kW293.6kW

Profile size range is stated as T × W — thickness × width in millimetres; a dash means the model is not intended for profile (long stock) processing. Pit depth is measured from finished floor level and applies to machines installed in a pit. Values are reference figures for standard configurations; dimensions, blast intensity and material handling can be adapted to your production line.

Technical Specifications of Custom Roller Conveyor Shot Blasting Machine

Need Custom Specs?

Our engineering team specializes in non-standard solutions. We can adapt dimensions, blasting intensity, and material handling to your workflow.

Consult Our Engineers arrow_forward

Global Success Cases

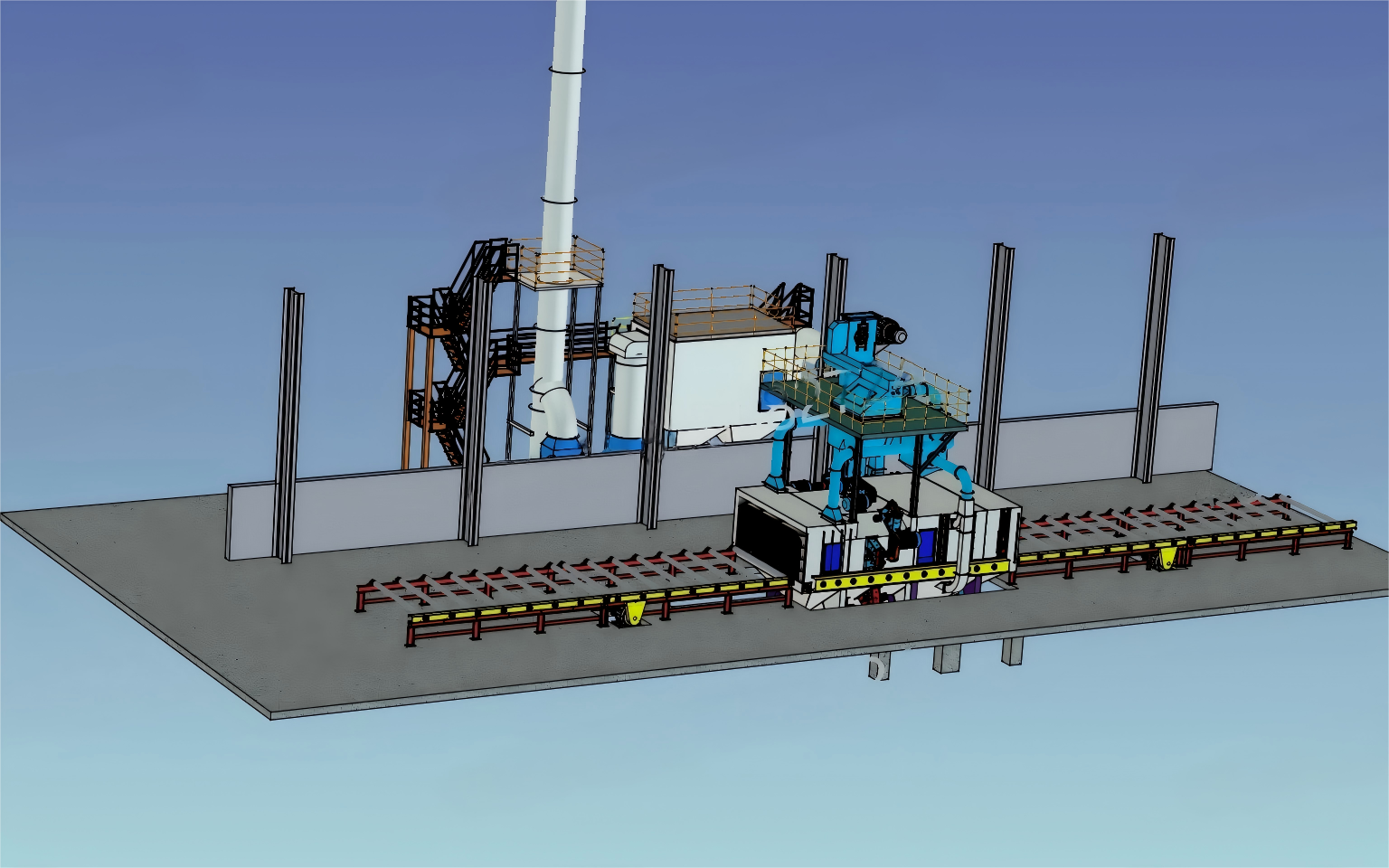

Jinwo Machinery Success Case: Steel Profiles - Germany - Custom Roller Conveyor Shot Blasting Solution

Steel Profiles - Germany

Efficiency increase of 40% with Sa 2.5 finish standard.

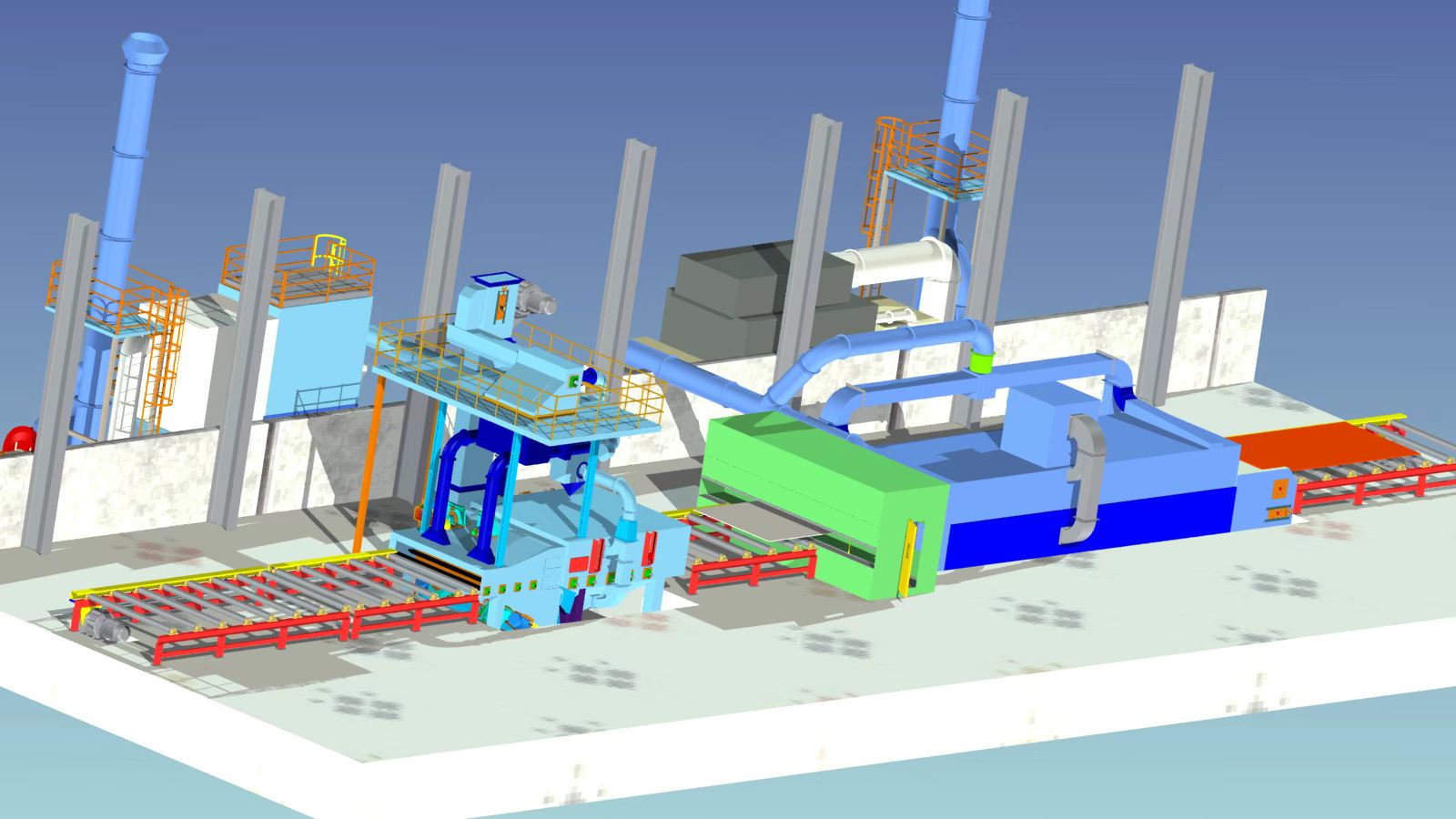

Jinwo Machinery Success Case: Steel Plates Pretreatment Line-USA - Custom Roller Conveyor Shot Blasting Solution

Steel Plates Pretreatment Line-USA

Through precision automated control, the efficient integration of shot blasting and spray coating processes is achieved.

Frequently Asked Questions

What is a roller conveyor shot blasting machine used for?expand_more

It is a fully automatic, continuous surface treatment machine for steel structural components. It removes rust, mill scale and welding slag from H-beams, I-beams, channel steel, steel plates and box girders, and applies a compressive stress layer that improves fatigue resistance and coating adhesion. Typical users are steel structure fabrication shops, bridge and wind turbine tower manufacturers, and engineering machinery plants. It is also used to strip old paint from components being refurbished and recoated.

How does the machine work?expand_more

Workpieces travel through the blast chamber at a constant speed on a roller conveyor. Multiple high-efficiency blast wheels throw steel shot at the surface from different angles. The shot is then recovered by screw conveyors, lifted by a bucket elevator and cleaned in an abrasive separator before being reused, while a dust collector purifies the exhaust air. Cleaned workpieces are discharged onto the next process step automatically, so the line runs continuously without manual handling between stages.

Which models are available and how wide a workpiece can each handle?expand_more

Eight standard models cover working widths from 800mm to 4000mm: Q698 (800mm), Q6910 (1000mm), Q6912 (1200mm), Q6915 (1500mm), Q6920 (2000mm), Q6925 (2500mm), Q6930 (3000mm) and Q6940 (4000mm). Wider or non-standard widths are available as custom builds.

What workpiece dimensions can the line accept?expand_more

Depending on model, workpiece thickness ranges from 3mm to 110mm and workpiece length from 1200mm to 18000mm (Q6940 handles 3000–18000mm). Profile sections are accepted up to T<20 × W<160mm on the mid-range models and T<30 × W<300mm on Q6930 and Q6940. Roller conveyor speed is stepless within 0.5–4m/min on most models, 0.5–4.5m/min on Q6930 and 2–8m/min on Q6940.

What surface cleanliness and roughness can it achieve?expand_more

The line reaches Sa 2.5 to Sa 3.0 according to ISO 8501-1, which satisfies high-performance coating systems. The actual result depends on abrasive grade, blasting intensity and conveyor speed; the target grade and roughness are agreed in the technical annex and verified during the factory acceptance test.

How many blast wheels does it use and how much abrasive does it circulate?expand_more

Standard models are fitted with 4 to 8 cantilever centrifugal blast wheels. Abrasive flow ranges from 8×180kg/min on Q698 to 8×360kg/min on Q6940, and the first abrasive charge is 4,000kg to 11,000kg depending on chamber size. The cantilever design gives a large shot capacity with long wear-part life.

How much power and dust extraction air volume does it need?expand_more

Total power excluding the dust collector ranges from 78kW (Q6910) to 293.6kW (Q6940). Dust extraction air volume ranges from 12,000m³/h on Q6910 to 38,000m³/h on Q6940. The dust removal system uses pulse cartridge filtration so that emission concentration stays within local standards.

Does the machine need a foundation pit?expand_more

Only the larger models do. Q698 and Q6910 are installed at floor level with no pit. Q6912 requires 1,616mm below floor level, Q6915 2,257mm, Q6925 2,535mm, Q6920 2,800mm, and Q6930 and Q6940 both 4,370mm. Pit dimensions and loading details are confirmed at the drawing approval stage.

What are the advantages over acid pickling or manual cleaning?expand_more

There is no pickling waste liquid, so no chemical pollution or disposal cost, and no acid safety hazard. Throughput is dozens of times higher than manual cleaning, and because the process is continuous and PLC-controlled, surface quality is consistent from the first workpiece to the last. The blasting action also creates a compressive stress layer that improves fatigue and corrosion resistance, which pickling does not provide.

What control system is used, and can it be customized?expand_more

The electrical system is PLC-based with a touch-screen HMI and switchable automatic/manual modes. Chamber size, roller pitch, blast wheel count, conveyor speed and dust extraction capacity are all configured to the workpiece mix and required throughput, so a line can be designed around an existing production flow rather than the other way round.
